Features

• Thumb-shifted focusing allows single-hand operation
• Optional integrated camera module
• Adapter DC power supply
• Ergonomic handles
• Coaxial spot max. 72mm, three types of light spot: maximum/medium/minimum, two types of filter: green/orange

Benefits

• Compact and concise, no exposed cables, easy to manoeuvre
• Built-in LED Illumination in the head, the service life of LED lamp is up to 50,000 hours, lower energy consumption and higher illumination
• Five magnification steps

Application

• Specification designed by The Hearing Lab Store for ear care application

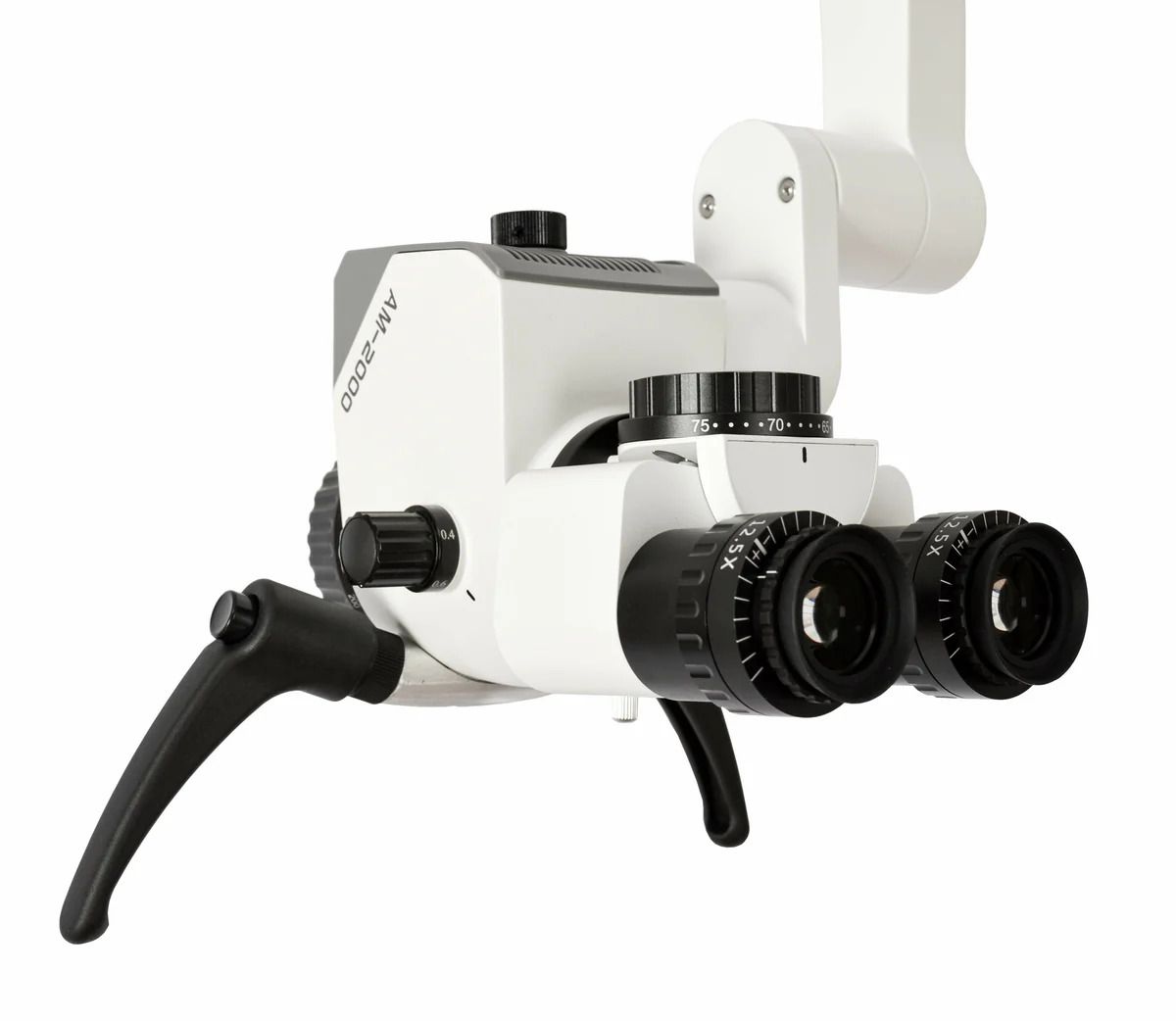

The Alltion AM-2000E ear care microscope is compact and concise, easy to operate, a high-quality surgical microscope with five magnification steps, an excellent ergonomic design and a high-quality optical system offering outstanding image quality and value. The German spring arm & optics from Schott provide excellent par-focal, large field of view, & precise and clear three-dimensional images.

The AM-2000E ear care microscope has premium-quality apochromatic optics that get rid of stray light and are multi-coated with all parts of optical element technology. It gives users better resolution, realistic colour, three-dimensional images, and a wider field of view, so you can see more clearly and comfortably and protect your eyes from visual fatigue

Incorporating flexible mechanical performance, excellent working distance objectives and a professional image solution, it provides convenient movement and manoeuvrability necessary for accurate positioning and optimises the diagnosis and work quality. The 200mm fixed-focus objective lens is optimal for the AM-2000 surgical microscope, which allows the practitioner's arms to reach the client's ear comfortably.

The built-in LED integrated illumination design provides higher illumination while ensuring low energy consumption. All-CAM2 or ALL-CAM4 camera modules are optional, and 1080P or 4K image output can be realised through HDMI cable, and photos and videos can be stored on USB flash disc

Specifications:

• 3.4/ 5.3/ 8.5/ 13.6/ 21X magnification
• 200mm fixed-focus objective lens
• Straight binocular head with interpupillary distance adjustment 50-75mm
• Brightness control knob
• Magnification system: 5 steps
• Apochromatic lens technology
• Eyepieces: 12X/18B
• Fine focus: 12mm range
• LED illumination provides excellent 5500k colour characteristics
• Colour rendering ≥85%
• Three types of light spot: Maximum/Medium/Minimum (without filter)
  Two types of filter: Green/Orange

• Illumination system: 50,000 lux
• Long-life LED: ≥50,000 hours
• Mobile floor stand
• 1-Year Warranty

Shipping and installation usually take between 4-6 weeks from the date of purchase. Delivery and installation are included. If you are ordering outside of the mainland UK, please contact us on 0151 662 0292 for further details and/or a quote.

Servicing and Warranty

• U.K.-based servicing, distribution and repair facility ensure prompt response times and peace of mind

Details of ALL-CAM2 Full Function Camera
